#include <ossimNitfXmlDataContentDes.h>

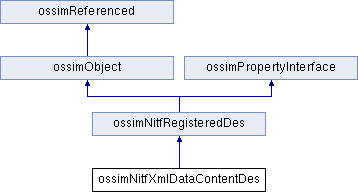

Inheritance diagram for ossimNitfXmlDataContentDes:

Public Types
enum	{ DESSHL_SIZE = 4, DESCRC_SIZE = 5, DESSHFT_SIZE = 8, DESSHDT_SIZE = 20, DESSHRP_SIZE = 40, DESSHSI_SIZE = 60, DESSHSV_SIZE = 10, DESSHSD_SIZE = 20, DESSHTN_SIZE = 120, DESSHLPG_SIZE = 125, DESSHLPT_SIZE = 25, DESSHLI_SIZE = 20, DESSHLIN_SIZE = 120, DESSHABS_SIZE = 200 }

Public Member Functions
	ossimNitfXmlDataContentDes ()

virtual void	parseStream (std::istream &in)
	This will allow the user defined data to parse the stream. More...

virtual void	writeStream (std::ostream &out)

virtual std::ostream &	print (std::ostream &out, const std::string &prefix=std::string()) const
	Pure virtual print method that outputs a key/value type format adding prefix to keys. More...

virtual void	clearFields ()

bool	loadState (const ossimKeywordlist &kwl, const char *prefix)

bool	loadValueFromXml (const ossimRefPtr< ossimXmlDocument >, const ossimString &xpath, ossimString &target) const

ossimString	getDesshl () const

ossim_uint32	getDesshlAsUint32 () const

ossimString	getDescrc () const

ossimString	getDesshft () const

ossimString	getDesshdt () const

ossimString	getDesshrp () const

ossimString	getDesshsi () const

ossimString	getDesshsv () const

ossimString	getDesshsd () const

ossimString	getDesshtn () const

Public Member Functions inherited from ossimNitfRegisteredDes
	ossimNitfRegisteredDes ()
	default constructor More...

	ossimNitfRegisteredDes (const std::string &desName, ossim_uint32 desLength)
	Constructor that takes name and size. More...

virtual	~ossimNitfRegisteredDes ()
	destructor More...

virtual std::string	getRegisterDesName () const
	This will return the name of the registered des for this user defined header. More...

virtual const std::string &	getDesName () const
	This will return the name of the registered des for this user defined header. More...

virtual void	setDesName (const std::string &desName)

virtual ossim_uint32	getSizeInBytes () const
	Returns the length in bytes of the des from the CEL or REL field. More...

virtual ossim_uint32	getDesLength () const
	Returns the length in bytes of the des from the CEL or REL field. More...

virtual void	setDesLength (ossim_uint32 length)
	Set the des length. More...

virtual void	setProperty (ossimRefPtr< ossimProperty > property)

virtual ossimRefPtr< ossimProperty >	getProperty (const ossimString &name) const

virtual void	getPropertyNames (std::vector< ossimString > &propertyNames) const

virtual void	getMetadata (ossimKeywordlist &kwl, const char *prefix=0) const
	Default interface to populate keyword list with metadata. More...

virtual bool	saveState (ossimKeywordlist &kwl, const ossimString &prefix) const

Public Member Functions inherited from ossimObject
	ossimObject ()

virtual	~ossimObject ()

virtual ossimObject *	dup () const

virtual ossimString	getShortName () const

virtual ossimString	getLongName () const

virtual ossimString	getDescription () const

virtual ossimString	getClassName () const

virtual RTTItypeid	getType () const

virtual bool	canCastTo (ossimObject *obj) const

virtual bool	canCastTo (const RTTItypeid &id) const

virtual bool	canCastTo (const ossimString &parentClassName) const

virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const

virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...

virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const

virtual void	accept (ossimVisitor &visitor)

Public Member Functions inherited from ossimReferenced
	ossimReferenced ()

	ossimReferenced (const ossimReferenced &)

ossimReferenced &	operator= (const ossimReferenced &)

void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...

int	referenceCount () const

Public Member Functions inherited from ossimPropertyInterface
	ossimPropertyInterface ()

virtual	~ossimPropertyInterface ()

virtual void	setProperty (const ossimString &name, const ossimString &value)

virtual ossimString	getPropertyValueAsString (const ossimString &name) const

void	getPropertyList (std::vector< ossimRefPtr< ossimProperty > > &propertyList) const

void	setProperties (std::vector< ossimRefPtr< ossimProperty > > &propertyList)

Protected Attributes
char	m_desshl [DESSHL_SIZE+1]

char	m_descrc [DESCRC_SIZE+1]

char	m_desshft [DESSHFT_SIZE+1]

char	m_desshdt [DESSHDT_SIZE+1]

char	m_desshrp [DESSHRP_SIZE+1]

char	m_desshsi [DESSHSI_SIZE+1]

char	m_desshsv [DESSHSV_SIZE+1]

char	m_desshsd [DESSHSD_SIZE+1]

char	m_desshtn [DESSHTN_SIZE+1]

char	m_desshlpg [DESSHLPG_SIZE+1]

char	m_desshlpt [DESSHLPT_SIZE+1]

char	m_desshli [DESSHLI_SIZE+1]

char	m_desshlin [DESSHLIN_SIZE+1]

char	m_desshabs [DESSHABS_SIZE+1]

ossimString	m_xmlString

ossimRefPtr< ossimXmlDocument >	m_xmlDocument

Protected Attributes inherited from ossimNitfRegisteredDes
std::string	m_desName

ossim_uint32	m_desLength

Additional Inherited Members
Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Detailed Description

Definition at line 5 of file ossimNitfXmlDataContentDes.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
DESSHL_SIZE
DESCRC_SIZE
DESSHFT_SIZE
DESSHDT_SIZE
DESSHRP_SIZE
DESSHSI_SIZE
DESSHSV_SIZE
DESSHSD_SIZE
DESSHTN_SIZE
DESSHLPG_SIZE
DESSHLPT_SIZE
DESSHLI_SIZE
DESSHLIN_SIZE
DESSHABS_SIZE

Definition at line 8 of file ossimNitfXmlDataContentDes.h.

    {
       DESSHL_SIZE = 4,
       DESCRC_SIZE = 5,
       DESSHFT_SIZE = 8,
       DESSHDT_SIZE = 20,
       DESSHRP_SIZE = 40,
       DESSHSI_SIZE = 60,
       DESSHSV_SIZE = 10,
       DESSHSD_SIZE = 20,
       DESSHTN_SIZE = 120,
       DESSHLPG_SIZE = 125,
       DESSHLPT_SIZE = 25,
       DESSHLI_SIZE = 20,
       DESSHLIN_SIZE = 120,
       DESSHABS_SIZE = 200
    };

Constructor & Destructor Documentation

◆ ossimNitfXmlDataContentDes()

ossimNitfXmlDataContentDes::ossimNitfXmlDataContentDes ( )

Definition at line 9 of file ossimNitfXmlDataContentDes.cpp.

References clearFields().

    : ossimNitfRegisteredDes(std::string("XML_DATA_CONTENT"), 0),
      m_xmlString()
 {
    clearFields();
 }

Member Function Documentation

◆ clearFields()

void ossimNitfXmlDataContentDes::clearFields ( )

virtual

Definition at line 94 of file ossimNitfXmlDataContentDes.cpp.

References DESCRC_SIZE, DESSHABS_SIZE, DESSHDT_SIZE, DESSHFT_SIZE, DESSHLI_SIZE, DESSHLIN_SIZE, DESSHLPG_SIZE, DESSHLPT_SIZE, DESSHRP_SIZE, DESSHSD_SIZE, DESSHSI_SIZE, DESSHSV_SIZE, DESSHTN_SIZE, m_descrc, m_desshabs, m_desshdt, m_desshft, m_desshli, m_desshlin, m_desshlpg, m_desshlpt, m_desshrp, m_desshsd, m_desshsi, m_desshsv, and m_desshtn.

Referenced by ossimNitfXmlDataContentDes(), and parseStream().

 {
    memset(m_descrc, ' ', DESCRC_SIZE);
    m_descrc[DESCRC_SIZE] = '\0';
    memset(m_desshft, ' ', DESSHFT_SIZE);
    m_desshft[DESSHFT_SIZE] = '\0';
    memset(m_desshdt, ' ', DESSHDT_SIZE);
    m_desshdt[DESSHDT_SIZE] = '\0';
    memset(m_desshrp, ' ', DESSHRP_SIZE);
    m_desshrp[DESSHRP_SIZE] = '\0';
    memset(m_desshsi, ' ', DESSHSI_SIZE);
    m_desshsi[DESSHSI_SIZE] = '\0';
    memset(m_desshsv, ' ', DESSHSV_SIZE);
    m_desshsv[DESSHSV_SIZE] = '\0';
    memset(m_desshsd, ' ', DESSHSD_SIZE);
    m_desshsd[DESSHSD_SIZE] = '\0';
    memset(m_desshtn, ' ', DESSHTN_SIZE);
    m_desshtn[DESSHTN_SIZE] = '\0';
    memset(m_desshlpg, ' ', DESSHLPG_SIZE);
    m_desshlpg[DESSHLPG_SIZE] = '\0';
    memset(m_desshlpt, ' ', DESSHLPT_SIZE);
    m_desshlpt[DESSHLPT_SIZE] = '\0';
    memset(m_desshli, ' ', DESSHLI_SIZE);
    m_desshli[DESSHLI_SIZE] = '\0';
    memset(m_desshlin, ' ', DESSHLIN_SIZE);
    m_desshlin[DESSHLIN_SIZE] = '\0';
    memset(m_desshabs, ' ', DESSHABS_SIZE);
    m_desshabs[DESSHABS_SIZE] = '\0';
 }

◆ getDescrc()

ossimString ossimNitfXmlDataContentDes::getDescrc ( ) const

Definition at line 178 of file ossimNitfXmlDataContentDes.cpp.

References m_descrc.

 {
    return ossimString(m_descrc);
 }

◆ getDesshdt()

ossimString ossimNitfXmlDataContentDes::getDesshdt ( ) const

Definition at line 188 of file ossimNitfXmlDataContentDes.cpp.

References m_desshdt.

 {
    return ossimString(m_desshdt);
 }

◆ getDesshft()

ossimString ossimNitfXmlDataContentDes::getDesshft ( ) const

Definition at line 183 of file ossimNitfXmlDataContentDes.cpp.

References m_desshft.

 {
    return ossimString(m_desshft);
 }

◆ getDesshl()

ossimString ossimNitfXmlDataContentDes::getDesshl ( ) const

◆ getDesshlAsUint32()

ossim_uint32 ossimNitfXmlDataContentDes::getDesshlAsUint32 ( ) const

◆ getDesshrp()

ossimString ossimNitfXmlDataContentDes::getDesshrp ( ) const

Definition at line 193 of file ossimNitfXmlDataContentDes.cpp.

References m_desshrp.

 {
    return ossimString(m_desshrp);
 }

◆ getDesshsd()

ossimString ossimNitfXmlDataContentDes::getDesshsd ( ) const

Definition at line 208 of file ossimNitfXmlDataContentDes.cpp.

References m_desshsd.

 {
    return ossimString(m_desshsd);
 }

◆ getDesshsi()

ossimString ossimNitfXmlDataContentDes::getDesshsi ( ) const

Definition at line 198 of file ossimNitfXmlDataContentDes.cpp.

References m_desshsi.

 {
    return ossimString(m_desshsi);
 }

◆ getDesshsv()

ossimString ossimNitfXmlDataContentDes::getDesshsv ( ) const

Definition at line 203 of file ossimNitfXmlDataContentDes.cpp.

References m_desshsv.

 {
    return ossimString(m_desshsv);
 }

◆ getDesshtn()

ossimString ossimNitfXmlDataContentDes::getDesshtn ( ) const

Definition at line 213 of file ossimNitfXmlDataContentDes.cpp.

References m_desshtn.

 {
    return ossimString(m_desshtn);
 }

◆ loadState()

bool ossimNitfXmlDataContentDes::loadState	(	const ossimKeywordlist &	kwl,
		const char *	prefix
	)

virtual

Method to the load (recreate) the state of the object from a keyword list. Return true if ok or false on error.

Reimplemented from ossimObject.

Definition at line 124 of file ossimNitfXmlDataContentDes.cpp.

References ossimKeywordlist::find(), m_descrc, m_desshdt, m_desshft, m_desshrp, m_desshsd, m_desshsi, m_desshsv, and m_desshtn.

 {
    const char* lookup;
    lookup = kwl.find(prefix, "DESCRC");
    {
       strcpy(m_descrc, lookup);
    }
    lookup = kwl.find(prefix, "DESSHFT");
    {
       strcpy(m_desshft, lookup);
    }
    lookup = kwl.find(prefix, "DESSHDT");
    {
       strcpy(m_desshdt, lookup);
    }
    lookup = kwl.find(prefix, "DESSHRP");
    {
       strcpy(m_desshrp, lookup);
    }
    lookup = kwl.find(prefix, "DESSHSI");
    {
       strcpy(m_desshsi, lookup);
    }
    lookup = kwl.find(prefix, "DESSHSV");
    {
       strcpy(m_desshsv, lookup);
    }
    lookup = kwl.find(prefix, "DESSHSD");
    {
       strcpy(m_desshsd, lookup);
    }
    lookup = kwl.find(prefix, "DESSHTN");
    {
       strcpy(m_desshtn, lookup);
    }

    return true;
 }

◆ loadValueFromXml()

bool ossimNitfXmlDataContentDes::loadValueFromXml	(	const ossimRefPtr< ossimXmlDocument >	xml,
		const ossimString &	xpath,
		ossimString &	target
	)		const

Definition at line 163 of file ossimNitfXmlDataContentDes.cpp.

References ossimXmlDocument::findNodes(), and ossimErrorStatusInterface::getErrorStatus().

 {
   bool result = false;
   if (xml->getErrorStatus()) return result;
   std::vector<ossimRefPtr<ossimXmlNode> > xml_nodes;
   xml->findNodes(xpath, xml_nodes);
   if (xml_nodes.size())
   {
     target = xml_nodes[0]->getText();
     result = true;
   }

   return result;
 }

◆ parseStream()

void ossimNitfXmlDataContentDes::parseStream ( std::istream & in )

virtual

This will allow the user defined data to parse the stream.

Implements ossimNitfRegisteredDes.

Definition at line 16 of file ossimNitfXmlDataContentDes.cpp.

References clearFields(), DESCRC_SIZE, DESSHABS_SIZE, DESSHDT_SIZE, DESSHFT_SIZE, DESSHLI_SIZE, DESSHLIN_SIZE, DESSHLPG_SIZE, DESSHLPT_SIZE, DESSHRP_SIZE, DESSHSD_SIZE, DESSHSI_SIZE, DESSHSV_SIZE, DESSHTN_SIZE, ossimNitfRegisteredDes::getSizeInBytes(), m_descrc, m_desshabs, m_desshdt, m_desshft, m_desshli, m_desshlin, m_desshlpg, m_desshlpt, m_desshrp, m_desshsd, m_desshsi, m_desshsv, m_desshtn, m_xmlDocument, m_xmlString, ossimXmlDocument::read(), and ossimString::string().

 {
   clearFields();

   in.read(m_descrc, DESCRC_SIZE);
   in.read(m_desshft, DESSHFT_SIZE);
   in.read(m_desshdt, DESSHDT_SIZE);
   in.read(m_desshrp, DESSHRP_SIZE);
   in.read(m_desshsi, DESSHSI_SIZE);
   in.read(m_desshsv, DESSHSV_SIZE);
   in.read(m_desshsd, DESSHSD_SIZE);
   in.read(m_desshtn, DESSHTN_SIZE);
   in.read(m_desshlpg, DESSHLPG_SIZE);
   in.read(m_desshlpt, DESSHLPT_SIZE);
   in.read(m_desshli, DESSHLI_SIZE);
   in.read(m_desshlin, DESSHLIN_SIZE);
   in.read(m_desshabs, DESSHABS_SIZE);

   if(getSizeInBytes())
   {
     char* c = new char[getSizeInBytes()+1];
     in.read(c, getSizeInBytes());
     c[getSizeInBytes()] = '\0';
     m_xmlString.string().resize(getSizeInBytes());
     m_xmlString = c;
     m_xmlDocument = new ossimXmlDocument;;
     std::istringstream xmlStringStream(m_xmlString.string());
     m_xmlDocument->read(xmlStringStream);
     delete [] c;
     c = 0;
   }
 }

◆ print()

std::ostream & ossimNitfXmlDataContentDes::print	(	std::ostream &	out,
		const std::string &	prefix = `std::string()`
	)		const

virtual

Pure virtual print method that outputs a key/value type format adding prefix to keys.

Reimplemented from ossimNitfRegisteredDes.

Definition at line 67 of file ossimNitfXmlDataContentDes.cpp.

References ossimNitfRegisteredDes::getDesName(), ossimPreferences::instance(), m_descrc, m_desshabs, m_desshdt, m_desshft, m_desshli, m_desshlpg, m_desshlpt, m_desshrp, m_desshsd, m_desshsi, m_desshsv, m_desshtn, m_xmlString, ossimString::substitute(), and ossimString::toBool().

 {
    bool typeinfo = ossimString(ossimPreferences::instance()->findPreference("kwl_type_info")).toBool();

    std::string pfx = prefix;
    pfx += getDesName() + ".";

    out << setiosflags(ios::left)
        << pfx << std::setw(24) << "DESCRC:" << ((typeinfo) ? "(string)" : "") << m_descrc << "\n"
        << pfx << std::setw(24) << "DESSHFT:" << ((typeinfo) ? "(string)" : "") << m_desshft << "\n"
        << pfx << std::setw(24) << "DESSHDT:" << ((typeinfo) ? "(string)" : "") << m_desshdt << "\n"
        << pfx << std::setw(24) << "DESSHRP:" << ((typeinfo) ? "(string)" : "") << m_desshrp << "\n"
        << pfx << std::setw(24) << "DESSHSI:" << ((typeinfo) ? "(string)" : "") << m_desshsi << "\n"
        << pfx << std::setw(24) << "DESSHSV:" << ((typeinfo) ? "(string)" : "") << m_desshsv << "\n"
        << pfx << std::setw(24) << "DESSHSD:" << ((typeinfo) ? "(string)" : "") << m_desshsd << "\n"
        << pfx << std::setw(24) << "DESSHTN:" << ((typeinfo) ? "(string)" : "") << m_desshtn << "\n"
        << pfx << std::setw(24) << "DESSHLPG:" << ((typeinfo) ? "(string)" : "") <<  m_desshlpg << "\n"
        << pfx << std::setw(24) << "DESSHLPT:" << ((typeinfo) ? "(string)" : "") <<  m_desshlpt << "\n"
        << pfx << std::setw(24) << "DESSHLI:" << ((typeinfo) ? "(string)" : "") <<  m_desshli << "\n"
        << pfx << std::setw(24) << "DESSHABS:" << ((typeinfo) ? "(string)" : "") <<  m_desshabs << "\n"
         // Quick hack to print on one line, this will leave extra spaces in CDATA sections
        << pfx << std::setw(24) << "XML:" << m_xmlString.substitute(ossimString("\n"), " ", true) << "\n"
    ;
    return out;
 }

◆ writeStream()

void ossimNitfXmlDataContentDes::writeStream ( std::ostream & out )

virtual

Implements ossimNitfRegisteredDes.

Definition at line 49 of file ossimNitfXmlDataContentDes.cpp.

References DESCRC_SIZE, DESSHABS_SIZE, DESSHDT_SIZE, DESSHFT_SIZE, DESSHL_SIZE, DESSHLI_SIZE, DESSHLIN_SIZE, DESSHLPG_SIZE, DESSHLPT_SIZE, DESSHRP_SIZE, DESSHSD_SIZE, DESSHSI_SIZE, DESSHSV_SIZE, DESSHTN_SIZE, m_descrc, m_desshabs, m_desshdt, m_desshft, m_desshl, m_desshli, m_desshlin, m_desshlpg, m_desshlpt, m_desshrp, m_desshsd, m_desshsi, m_desshsv, and m_desshtn.

 {
    out.write(m_desshl, DESSHL_SIZE);
    out.write(m_descrc, DESCRC_SIZE);
    out.write(m_desshft, DESSHFT_SIZE);
    out.write(m_desshdt, DESSHDT_SIZE);
    out.write(m_desshrp, DESSHRP_SIZE);
    out.write(m_desshsi, DESSHSI_SIZE);
    out.write(m_desshsv, DESSHSV_SIZE);
    out.write(m_desshsd, DESSHSD_SIZE);
    out.write(m_desshtn, DESSHTN_SIZE);
    out.write(m_desshlpg, DESSHLPG_SIZE);
    out.write(m_desshlpt, DESSHLPT_SIZE);
    out.write(m_desshli, DESSHLI_SIZE);
    out.write(m_desshlin, DESSHLIN_SIZE);
    out.write(m_desshabs, DESSHABS_SIZE);
 }
