ossimNitfDataExtensionSegment Class Reference

#include <ossimNitfDataExtensionSegment.h>

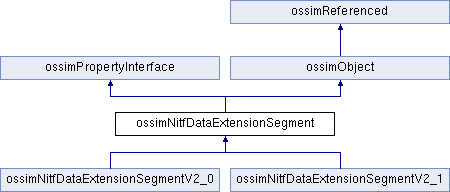

Inheritance diagram for ossimNitfDataExtensionSegment:

Public Member Functions
	ossimNitfDataExtensionSegment ()
virtual	~ossimNitfDataExtensionSegment ()
virtual void	parseStream (std::istream &in, ossim_uint64 dataLength)=0
virtual const std::vector< ossimNitfTagInformation > &	getTagList () const =0
virtual void	getPropertyNames (std::vector< ossimString > &propertyNames) const
Public Member Functions inherited from ossimPropertyInterface
	ossimPropertyInterface ()
virtual	~ossimPropertyInterface ()
virtual void	setProperty (const ossimString &name, const ossimString &value)
virtual void	setProperty (ossimRefPtr< ossimProperty > property)
virtual ossimRefPtr< ossimProperty >	getProperty (const ossimString &name) const
virtual ossimString	getPropertyValueAsString (const ossimString &name) const
void	getPropertyList (std::vector< ossimRefPtr< ossimProperty > > &propertyList) const
void	setProperties (std::vector< ossimRefPtr< ossimProperty > > &propertyList)
Public Member Functions inherited from ossimObject
	ossimObject ()
virtual	~ossimObject ()
virtual ossimObject *	dup () const
virtual ossimString	getShortName () const
virtual ossimString	getLongName () const
virtual ossimString	getDescription () const
virtual ossimString	getClassName () const
virtual RTTItypeid	getType () const
virtual bool	canCastTo (ossimObject *obj) const
virtual bool	canCastTo (const RTTItypeid &id) const
virtual bool	canCastTo (const ossimString &parentClassName) const
virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const
virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)
virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...
virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const
virtual void	accept (ossimVisitor &visitor)
Public Member Functions inherited from ossimReferenced
	ossimReferenced ()
	ossimReferenced (const ossimReferenced &)
ossimReferenced &	operator= (const ossimReferenced &)
void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...
void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
int	referenceCount () const

Static Public Attributes
static const ossimString	DE_KW
static const ossimString	DESVER_KW
static const ossimString	DESOFLW_KW = "desoflw"
static const ossimString	DESITEM_KW = "desitem"
static const ossimString	DESSHL_KW = "desshl"
static const ossimString	DESSHF_KW = "desshf"
static const ossimString	DESDATA_KW = "desdata"
static const ossimString	DECLAS_KW = "declas"
static const ossimString	DESCODE_KW = "descode"
static const ossimString	DESCTLH_KW = "desctlh"
static const ossimString	DESREL_KW = "desrel"
static const ossimString	DESCAUT_KW = "descaut"
static const ossimString	DESCTLN_KW = "desctln"

Friends
std::ostream &	operator<< (std::ostream &out, const ossimNitfDataExtensionSegment &data)

Additional Inherited Members
Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Detailed Description

Definition at line 24 of file ossimNitfDataExtensionSegment.h.

Constructor & Destructor Documentation

ossimNitfDataExtensionSegment()

ossimNitfDataExtensionSegment::ossimNitfDataExtensionSegment ( )

inline

Definition at line 29 of file ossimNitfDataExtensionSegment.h.

{}

~ossimNitfDataExtensionSegment()

virtual ossimNitfDataExtensionSegment::~ossimNitfDataExtensionSegment ( )

inlinevirtual

Definition at line 30 of file ossimNitfDataExtensionSegment.h.

{}

Member Function Documentation

getPropertyNames()

void ossimNitfDataExtensionSegment::getPropertyNames ( std::vector< ossimString > &  propertyNames ) const

virtual

Reimplemented from ossimPropertyInterface.

Reimplemented in ossimNitfDataExtensionSegmentV2_1, and ossimNitfDataExtensionSegmentV2_0.

Definition at line 43 of file ossimNitfDataExtensionSegment.cpp.

References DE_KW, DECLAS_KW, DESCAUT_KW, DESCODE_KW, DESCTLH_KW, DESCTLN_KW, DESDATA_KW, DESITEM_KW, DESOFLW_KW, DESREL_KW, DESSHF_KW, DESSHL_KW, and DESVER_KW.

Referenced by ossimNitfDataExtensionSegmentV2_0::getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::getPropertyNames().

{
   propertyNames.push_back(DE_KW);
   propertyNames.push_back(DESVER_KW);
   propertyNames.push_back(DESOFLW_KW);
   propertyNames.push_back(DESITEM_KW);
   propertyNames.push_back(DESSHL_KW);
   propertyNames.push_back(DESSHF_KW);
   propertyNames.push_back(DESDATA_KW);
   propertyNames.push_back(DECLAS_KW);
   propertyNames.push_back(DESCODE_KW);
   propertyNames.push_back(DESCTLH_KW);
   propertyNames.push_back(DESREL_KW);
   propertyNames.push_back(DESCAUT_KW);
   propertyNames.push_back(DESCTLN_KW);
}

getTagList()

virtual const std::vector<ossimNitfTagInformation>& ossimNitfDataExtensionSegment::getTagList ( ) const

pure virtual

Implemented in ossimNitfDataExtensionSegmentV2_1, and ossimNitfDataExtensionSegmentV2_0.

Referenced by ossimNitfFileHeaderV2_1::readOverflowTags(), and ossimNitfFileHeaderV2_0::readOverflowTags().

parseStream()

virtual void ossimNitfDataExtensionSegment::parseStream ( std::istream &  in, ossim_uint64  dataLength  )

pure virtual

Implemented in ossimNitfDataExtensionSegmentV2_1, and ossimNitfDataExtensionSegmentV2_0.

Referenced by ossimNitfFileHeaderV2_1::getNewDataExtensionSegment(), and ossimNitfFileHeaderV2_0::getNewDataExtensionSegment().

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  out, const ossimNitfDataExtensionSegment &  data  )

friend

Definition at line 35 of file ossimNitfDataExtensionSegment.cpp.

{
   data.print(out);

   return out;
}

Member Data Documentation

DE_KW

const ossimString ossimNitfDataExtensionSegment::DE_KW

static

Definition at line 36 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), ossimNitfDataExtensionSegmentV2_1::setProperty(), and ossimNitfWriter::takeOverflowTags().

DECLAS_KW

const ossimString ossimNitfDataExtensionSegment::DECLAS_KW = "declas"

static

Definition at line 43 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::setProperty().

DESCAUT_KW

const ossimString ossimNitfDataExtensionSegment::DESCAUT_KW = "descaut"

static

Definition at line 47 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::setProperty().

DESCODE_KW

const ossimString ossimNitfDataExtensionSegment::DESCODE_KW = "descode"

static

Definition at line 44 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::setProperty().

DESCTLH_KW

const ossimString ossimNitfDataExtensionSegment::DESCTLH_KW = "desctlh"

static

Definition at line 45 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::setProperty().

DESCTLN_KW

const ossimString ossimNitfDataExtensionSegment::DESCTLN_KW = "desctln"

static

Definition at line 48 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::setProperty().

DESDATA_KW

const ossimString ossimNitfDataExtensionSegment::DESDATA_KW = "desdata"

static

Definition at line 42 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::setProperty().

DESITEM_KW

const ossimString ossimNitfDataExtensionSegment::DESITEM_KW = "desitem"

static

Definition at line 39 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), ossimNitfDataExtensionSegmentV2_1::setProperty(), and ossimNitfWriter::takeOverflowTags().

DESOFLW_KW

const ossimString ossimNitfDataExtensionSegment::DESOFLW_KW = "desoflw"

static

Definition at line 38 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), ossimNitfDataExtensionSegmentV2_1::setProperty(), and ossimNitfWriter::takeOverflowTags().

DESREL_KW

const ossimString ossimNitfDataExtensionSegment::DESREL_KW = "desrel"

static

Definition at line 46 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::setProperty().

DESSHF_KW

const ossimString ossimNitfDataExtensionSegment::DESSHF_KW = "desshf"

static

Definition at line 41 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::setProperty().

DESSHL_KW

const ossimString ossimNitfDataExtensionSegment::DESSHL_KW = "desshl"

static

Definition at line 40 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), and ossimNitfDataExtensionSegmentV2_1::setProperty().

DESVER_KW

const ossimString ossimNitfDataExtensionSegment::DESVER_KW

static

Definition at line 37 of file ossimNitfDataExtensionSegment.h.

Referenced by ossimNitfDataExtensionSegmentV2_0::getProperty(), ossimNitfDataExtensionSegmentV2_1::getProperty(), getPropertyNames(), ossimNitfDataExtensionSegmentV2_1::setProperty(), and ossimNitfWriter::takeOverflowTags().

---

The documentation for this class was generated from the following files:

• ossimNitfDataExtensionSegment.h
• ossimNitfDataExtensionSegment.cpp
