ossimGridRemapEngine Class Reference

#include <ossimGridRemapEngine.h>

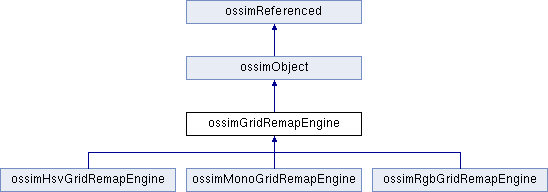

Inheritance diagram for ossimGridRemapEngine:

Public Member Functions
virtual ossimObject *	dup () const =0
virtual void	remapTile (const ossimDpt &origin_point, ossimGridRemapSource *remapper, ossimRefPtr< ossimImageData > &tile)=0
virtual void	assignRemapValues (std::vector< ossimAtbPointSource *> &sources)=0
virtual void	computeSourceValue (ossimRefPtr< ossimImageData > &source, void *result)=0
int	getNumberOfParams () const
int	getNumberOfBands () const
Public Member Functions inherited from ossimObject
	ossimObject ()
virtual	~ossimObject ()
virtual ossimString	getShortName () const
virtual ossimString	getLongName () const
virtual ossimString	getDescription () const
virtual ossimString	getClassName () const
virtual RTTItypeid	getType () const
virtual bool	canCastTo (ossimObject *obj) const
virtual bool	canCastTo (const RTTItypeid &id) const
virtual bool	canCastTo (const ossimString &parentClassName) const
virtual bool	saveState (ossimKeywordlist &kwl, const char *prefix=0) const
virtual bool	loadState (const ossimKeywordlist &kwl, const char *prefix=0)
virtual std::ostream &	print (std::ostream &out) const
	Generic print method. More...
virtual bool	isEqualTo (const ossimObject &obj, ossimCompareType compareType=OSSIM_COMPARE_FULL) const
virtual void	accept (ossimVisitor &visitor)
Public Member Functions inherited from ossimReferenced
	ossimReferenced ()
	ossimReferenced (const ossimReferenced &)
ossimReferenced &	operator= (const ossimReferenced &)
void	ref () const
	increment the reference count by one, indicating that this object has another pointer which is referencing it. More...
void	unref () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
void	unref_nodelete () const
	decrement the reference count by one, indicating that a pointer to this object is referencing it. More...
int	referenceCount () const

Protected Member Functions
	ossimGridRemapEngine (int numParams, int numBands)
	ossimGridRemapEngine ()
virtual	~ossimGridRemapEngine ()
virtual void	computeRemapNode (ossimAtbPointSource *point_source, void *source_value, void *target_value)=0
Protected Member Functions inherited from ossimReferenced
virtual	~ossimReferenced ()

Protected Attributes
int	theNumberOfParams
int	theNumberOfBands

Detailed Description

---

CLASS: ossimGridRemapEngine

Definition at line 36 of file ossimGridRemapEngine.h.

Constructor & Destructor Documentation

ossimGridRemapEngine() [1/2]

ossimGridRemapEngine::ossimGridRemapEngine ( int  numParams, int  numBands  )

inlineprotected

Definition at line 55 of file ossimGridRemapEngine.h.

      : theNumberOfParams(numParams), theNumberOfBands(numBands) {}

ossimGridRemapEngine() [2/2]

ossimGridRemapEngine::ossimGridRemapEngine ( )

inlineprotected

Definition at line 58 of file ossimGridRemapEngine.h.

{}

~ossimGridRemapEngine()

virtual ossimGridRemapEngine::~ossimGridRemapEngine ( )

inlineprotectedvirtual

Definition at line 59 of file ossimGridRemapEngine.h.

{}

Member Function Documentation

assignRemapValues()

virtual void ossimGridRemapEngine::assignRemapValues ( std::vector< ossimAtbPointSource *> &  sources )

pure virtual

Implemented in ossimHsvGridRemapEngine, ossimMonoGridRemapEngine, and ossimRgbGridRemapEngine.

computeRemapNode()

virtual void ossimGridRemapEngine::computeRemapNode ( ossimAtbPointSource *  point_source, void *  source_value, void *  target_value  )

protectedpure virtual

Implemented in ossimHsvGridRemapEngine, ossimMonoGridRemapEngine, and ossimRgbGridRemapEngine.

computeSourceValue()

virtual void ossimGridRemapEngine::computeSourceValue ( ossimRefPtr< ossimImageData > &  source, void *  result  )

pure virtual

Implemented in ossimHsvGridRemapEngine, ossimMonoGridRemapEngine, and ossimRgbGridRemapEngine.

dup()

virtual ossimObject* ossimGridRemapEngine::dup ( ) const

pure virtual

Reimplemented from ossimObject.

Implemented in ossimHsvGridRemapEngine, ossimMonoGridRemapEngine, and ossimRgbGridRemapEngine.

getNumberOfBands()

int ossimGridRemapEngine::getNumberOfBands ( ) const

inline

Definition at line 52 of file ossimGridRemapEngine.h.

References theNumberOfBands.

{ return theNumberOfBands; }

getNumberOfParams()

int ossimGridRemapEngine::getNumberOfParams ( ) const

inline

Definition at line 50 of file ossimGridRemapEngine.h.

References theNumberOfParams.

Referenced by ossimGridRemapSource::initialize().

{ return theNumberOfParams; }

remapTile()

virtual void ossimGridRemapEngine::remapTile ( const ossimDpt &  origin_point, ossimGridRemapSource *  remapper, ossimRefPtr< ossimImageData > &  tile  )

pure virtual

Implemented in ossimHsvGridRemapEngine, ossimMonoGridRemapEngine, and ossimRgbGridRemapEngine.

Referenced by ossimGridRemapSource::getTile().

Member Data Documentation

theNumberOfBands

int ossimGridRemapEngine::theNumberOfBands

protected

Definition at line 65 of file ossimGridRemapEngine.h.

Referenced by getNumberOfBands().

theNumberOfParams

int ossimGridRemapEngine::theNumberOfParams

protected

Definition at line 64 of file ossimGridRemapEngine.h.

Referenced by getNumberOfParams().

---

The documentation for this class was generated from the following file:

• ossimGridRemapEngine.h
